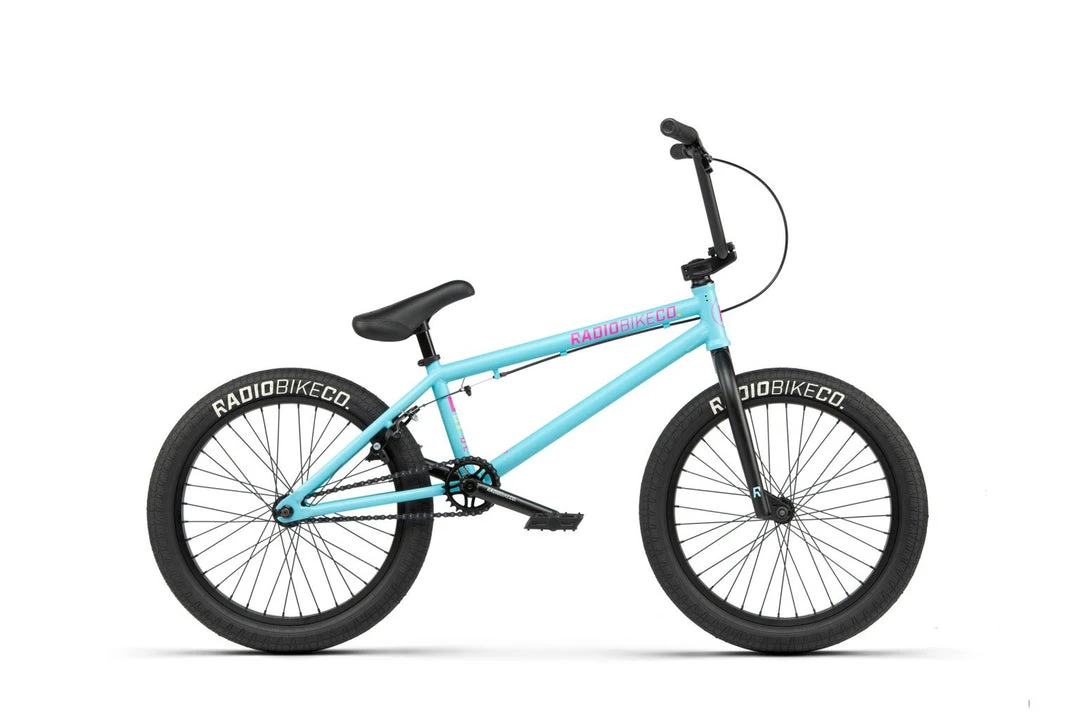

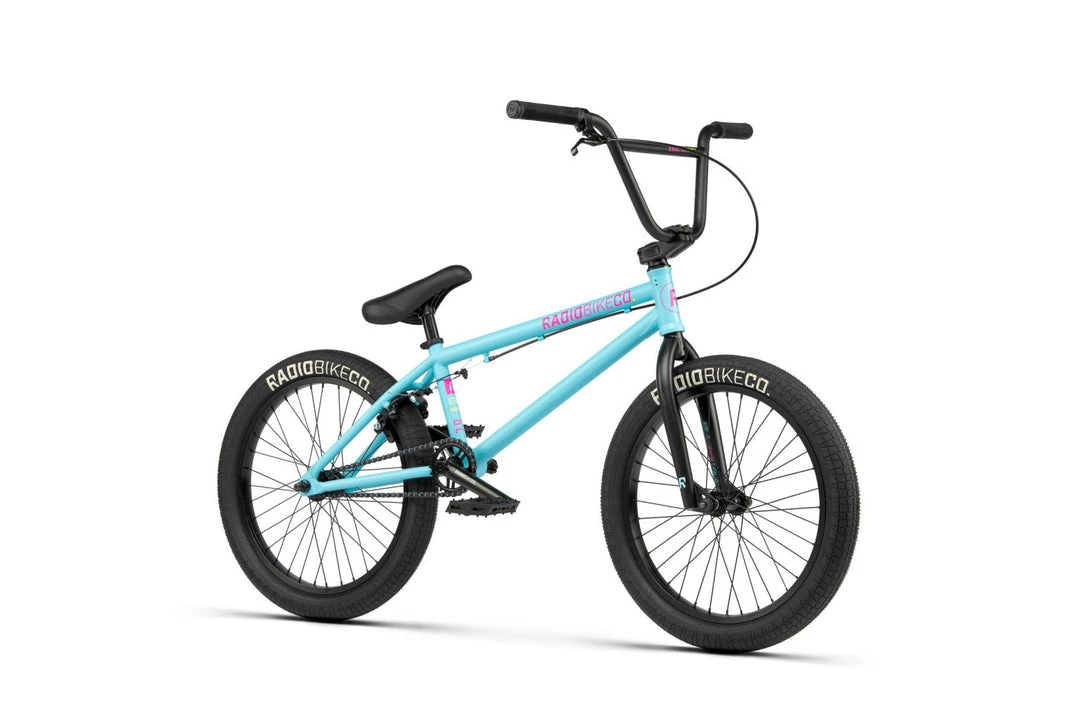

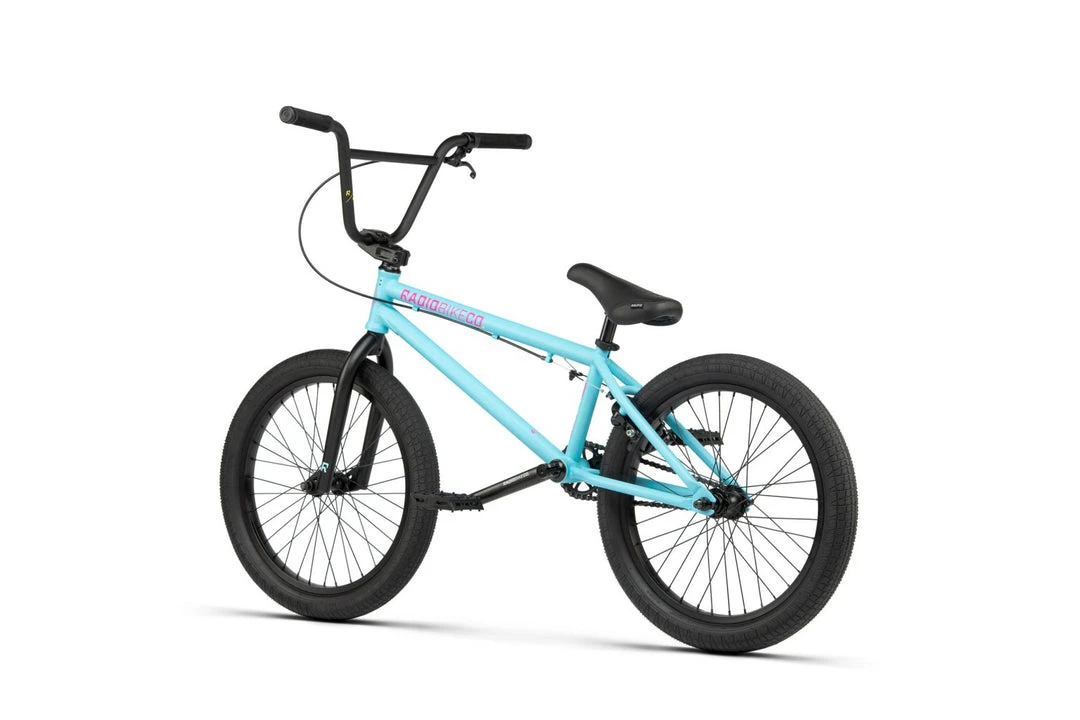

Radio 2021 Evol Complete BMX Bike – Matt Sky Blue

The Evol enters 2021 with a fresh injection of new parts and flavour. A solid entry level machine with everything you need to start making serious progression with your riding. Boasting a crmo toptube and a sealed integrated headset and Mid-sized bottom bracket, details like the big logo Radio Rookie tires and Oil Slick sprocket make the EVOL something very special and unique.



Specifications:

• Frame: Radio “EVOL” frame, crmo top tube, 1020 hi-ten
• Fork: Radio “AM” fork, 1020 hi-ten, crmo steerer, tapered legs
• Handlebar: Radio “AM 20” bar, 1020 hi-ten
• Grips: Salt “EX” grips, flangless, 155mm
• Stem: Radio “AM” topload stem, 50mm reach
• Headset: Salt “PRO” integ. headset, sealed ball
• Gyro: Holes for removable tabs
• Brake Lever: Radio “AM” alloy brake lever
• Brake: Radio “AM” Alloy U-Brake Rear
• Crank: Radio “ROOKIE” tubular 3pc crank crmo, 165mm, 8 spline
• BB: Mid size, press fit, sealed bearing

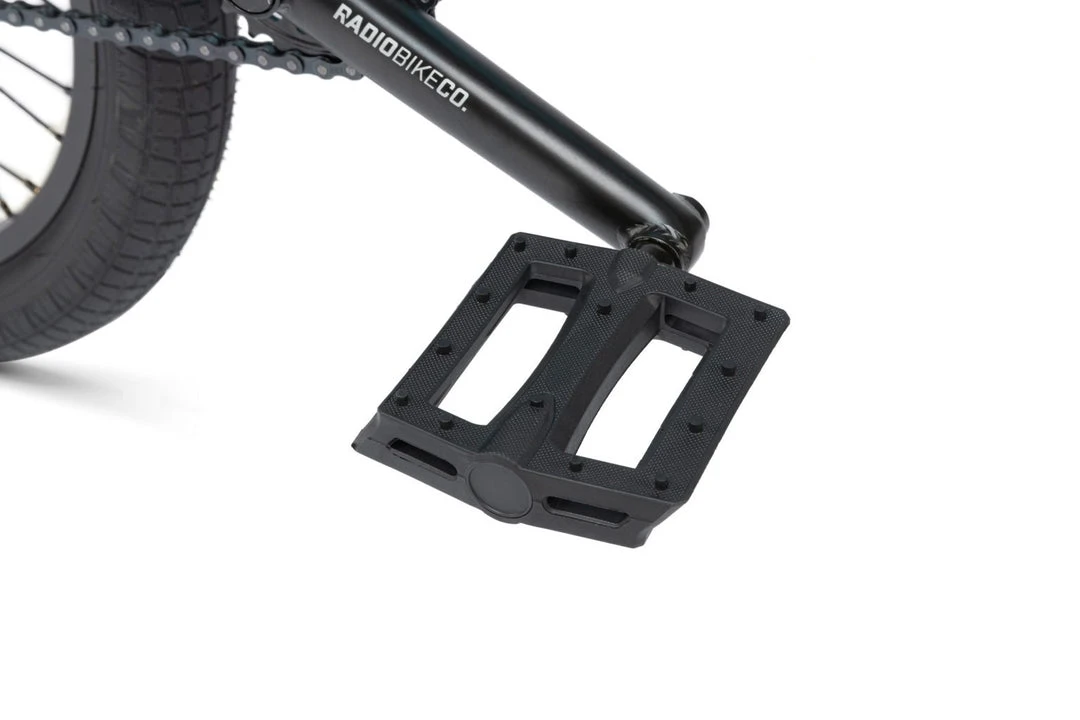

• Pedals: Radio “PRO” Nylon Fibreglass Pedals
• Chain: Salt “AM” chain, WZ1 type
• Sprocket: Radio “VISION” steel 25t sprocket
• Driver: 9T cassette driver, loose ball
• Front Hub: Radio “Rookie” steel hub, lb, 3/8″s, 36h

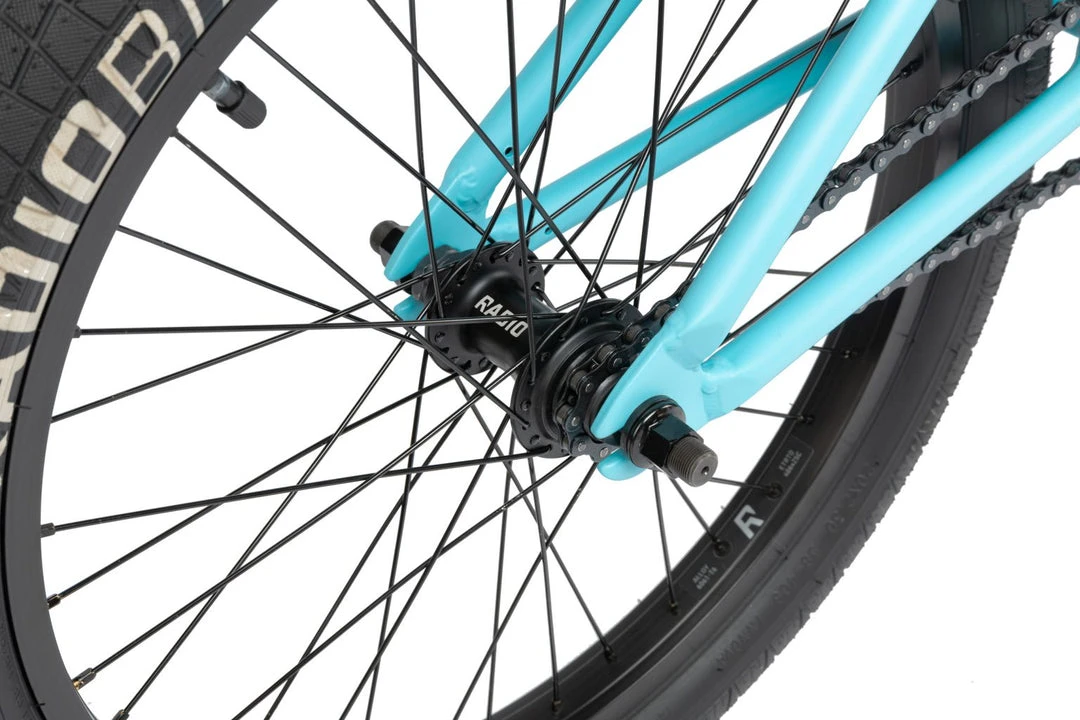

• Rear Hub: Radio “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
• Front Rim: Radio “ROOKIE” rim, single wall, 36h
• Rear Rim: Radio “ROOKIE” rim, single wall, 36h

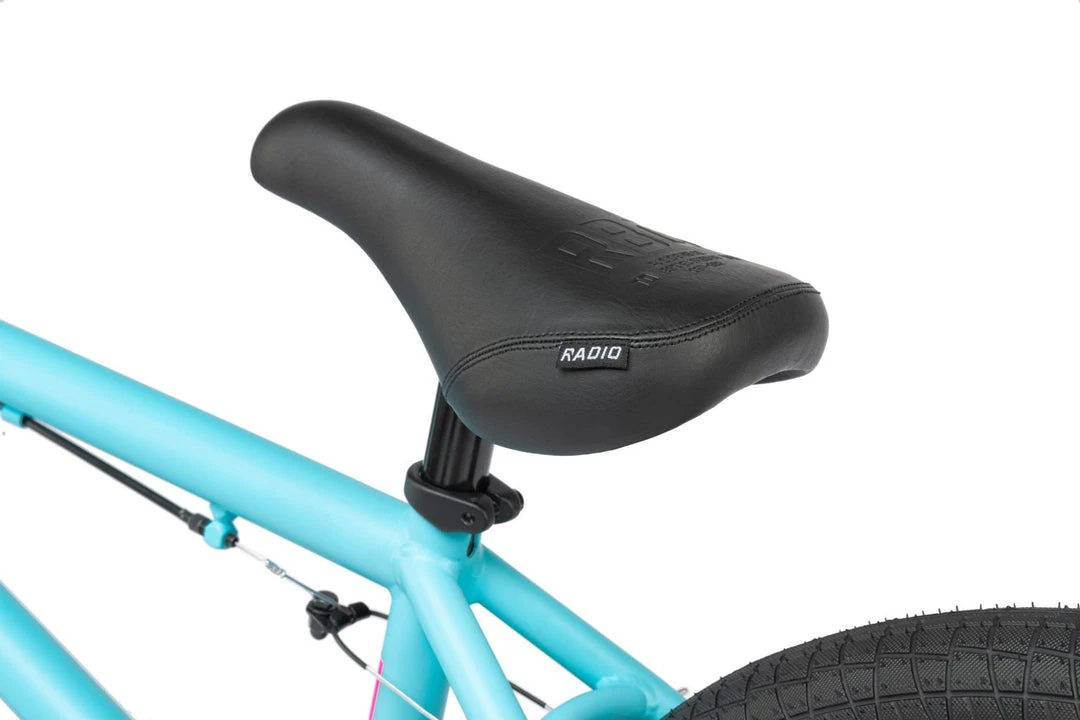

• Seat: Radio “CENTURY” mid padded combo seat
• Seat Post: –
• Seat Clamp: Radio “SLIM” alloy seat clamp

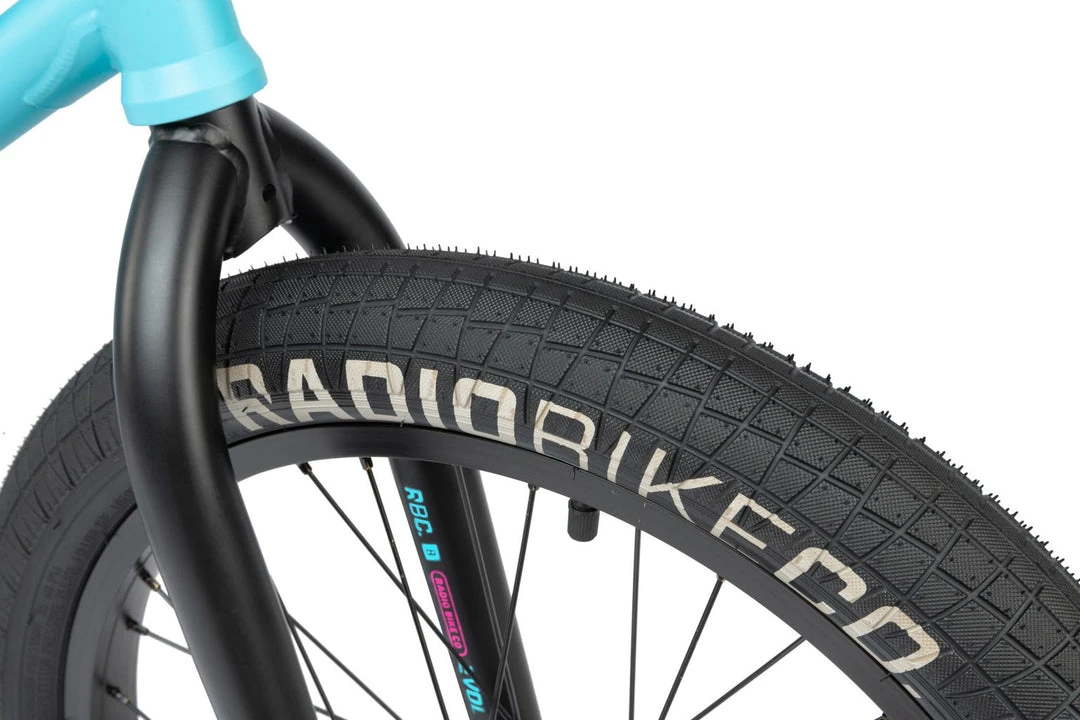

• Tires: Radio “ROOKIE” tires, 2.3″ front & rear
• Weight: 12.25kg / 27.02lbs

Frame Geometry:

• Toptube: 20.3″
• Chainstays: 13.2″
• Headtube Angle: 75°
• Seattube Angle: 71.5°
• Bottom Bracket Height: 11.75″
• Standover Height: 8.25″

Handlebar Geometry:

• Rise: 8.8″
• Width: 29″
• Backsweep: 11°
• Upsweep: 2°
