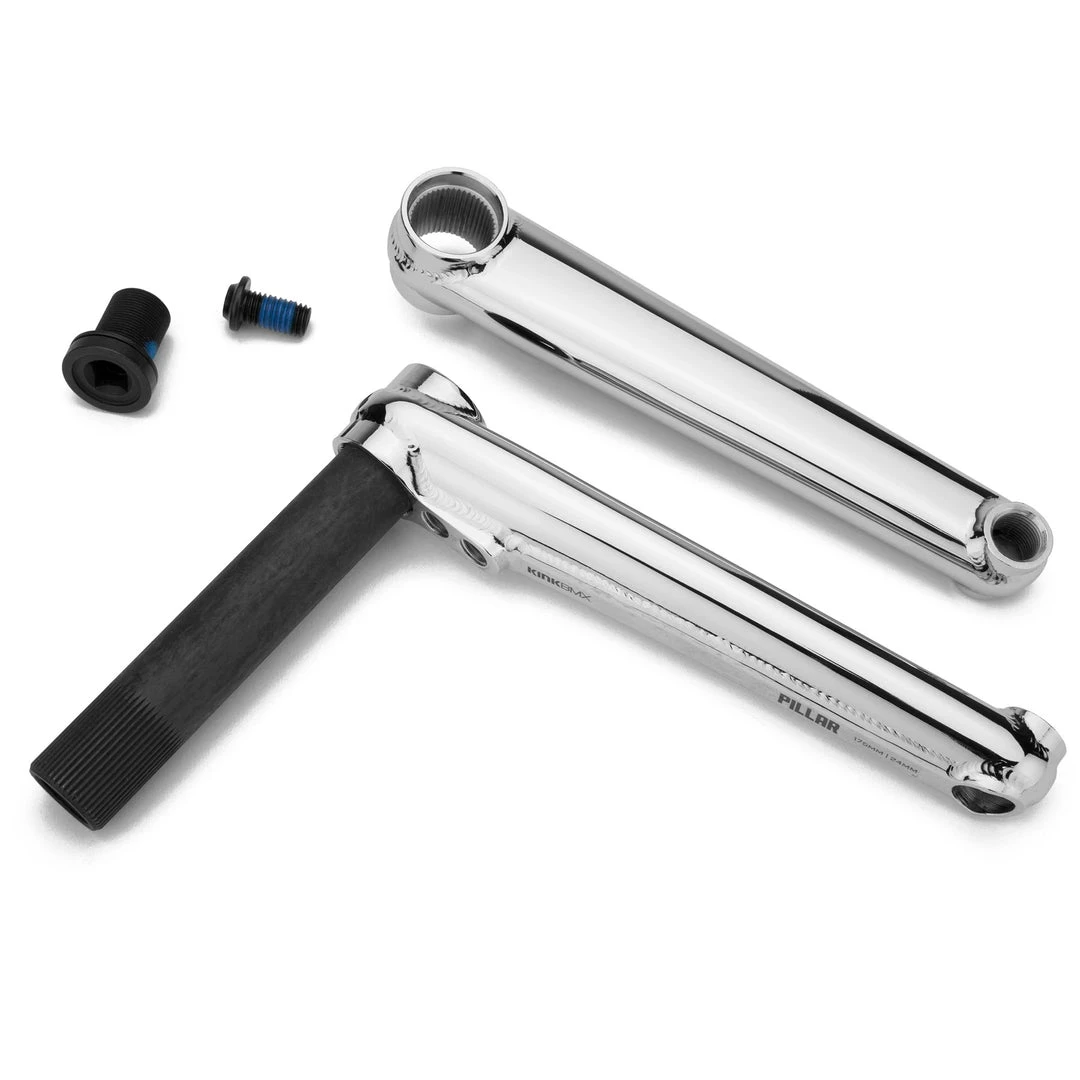

Kink BMX Pillar 24 Cranks 175mm – Chrome

As the name implies, the Pillar 24 cranks are our 24mm version of the proven Pillar cranks. In additional to a much improved strength to weight ratio, the 24mm (23.8mm) spindle means sprockets mount directly without the need of added adapters. The Pillar 24 cranks use the same exclusive single piece forged backplate found in the original Pillar cranks, that tie together the pedal and spindle bosses. Acting as an extremely stiff backbone to each crank arm, this design eliminates several weak points found in traditional tubular cranks. The Pillar 24 cranks also feature a two piece hydraulically pressed spindle to arm design, and a heat-treated hollow chromoly spindle.

Specifications:

• Arms: Chromoly With Unique One Piece Forged Backplate
• Heat Treatment: TruTherm Post Weld Heat Treated
• Spindle: 24mm Hollow
• Splines: 48 Spline
• Sizes: 175mm
• Drive Side Options: Works with LHD and RHD
• Drive Type: Regular and Micro Drive Sprocket Bolt Bosses
• Weight: 28.5oz
